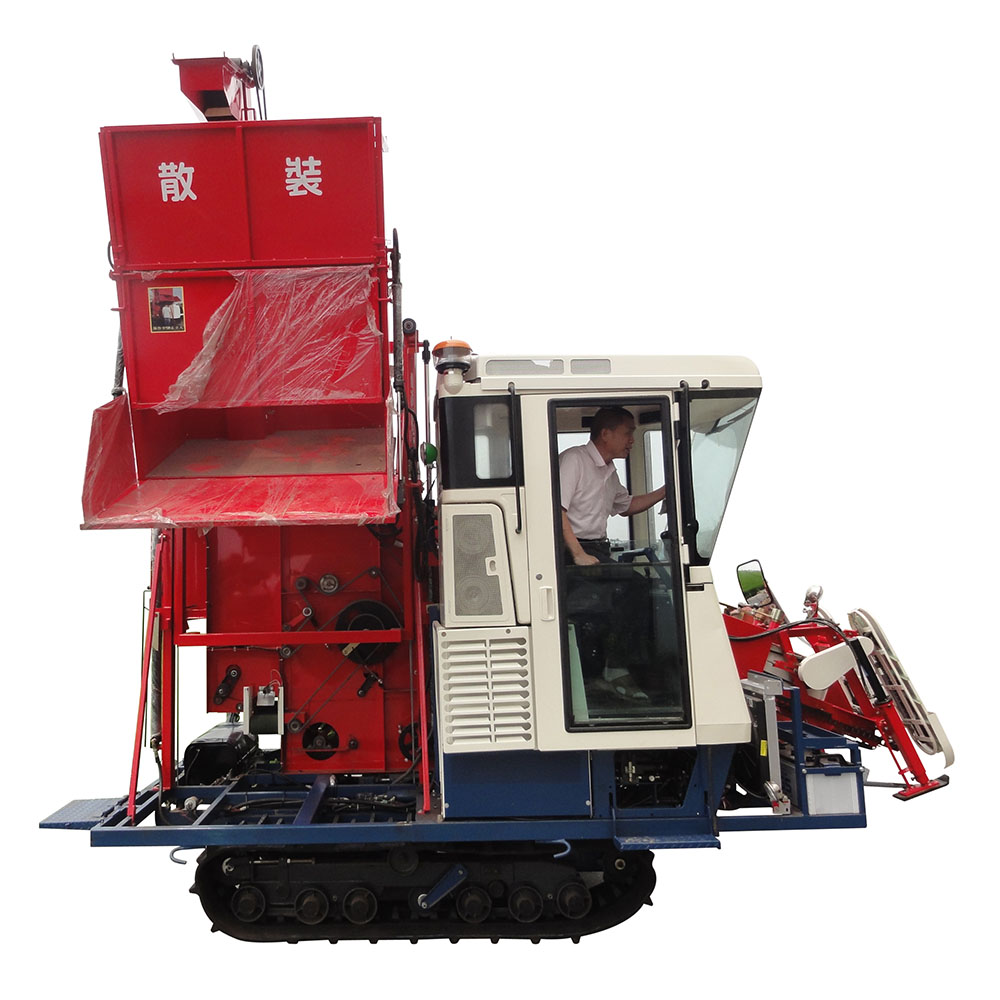

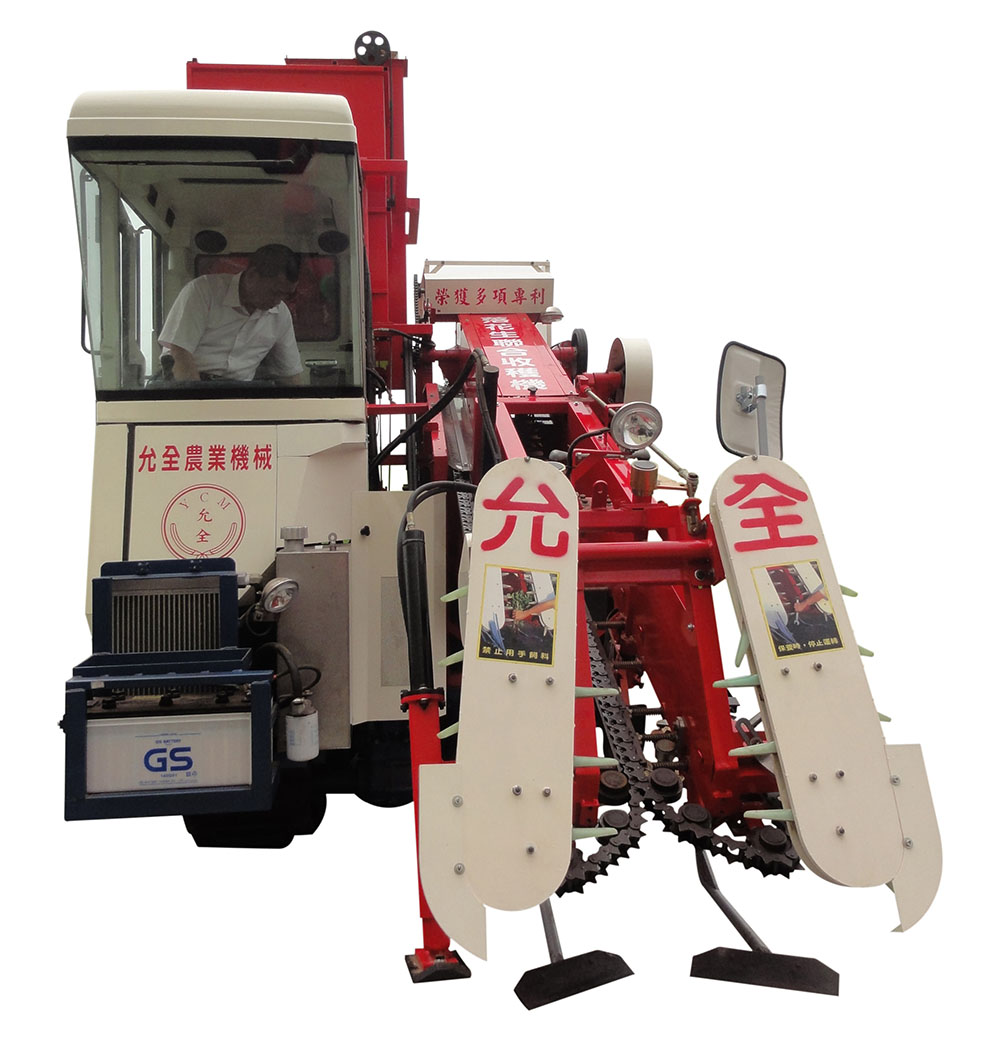

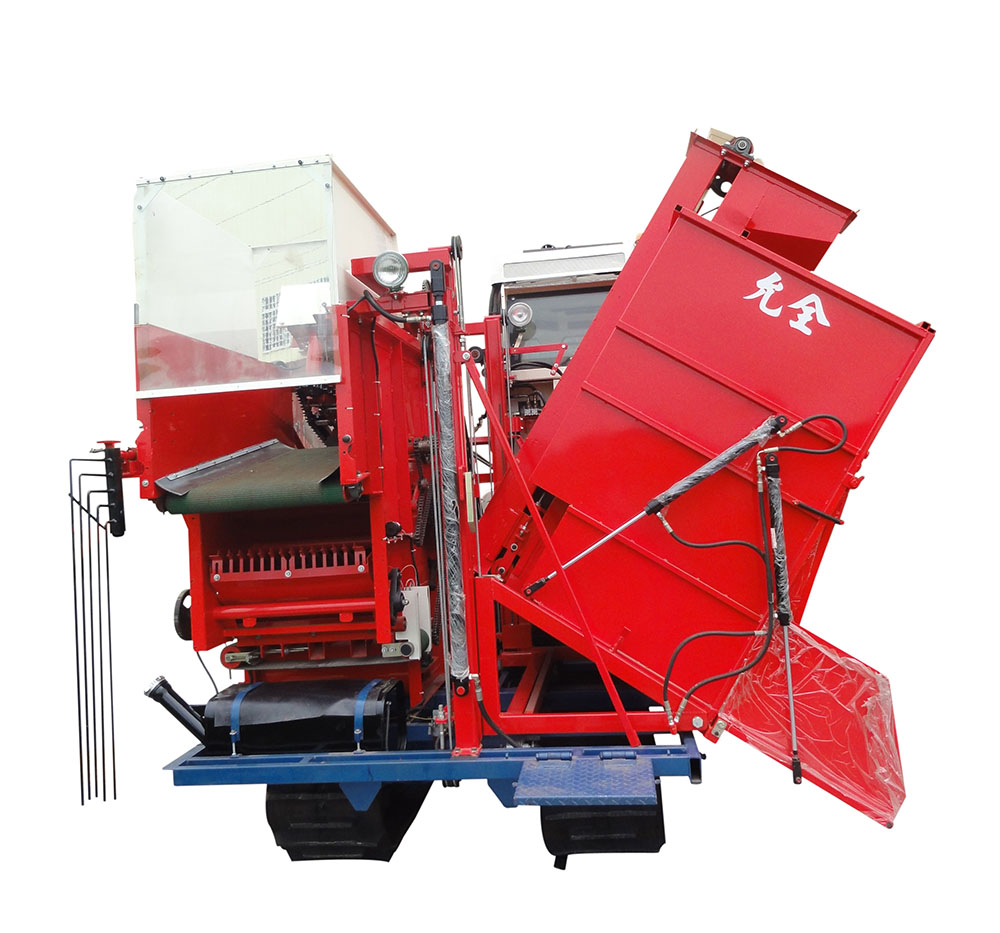

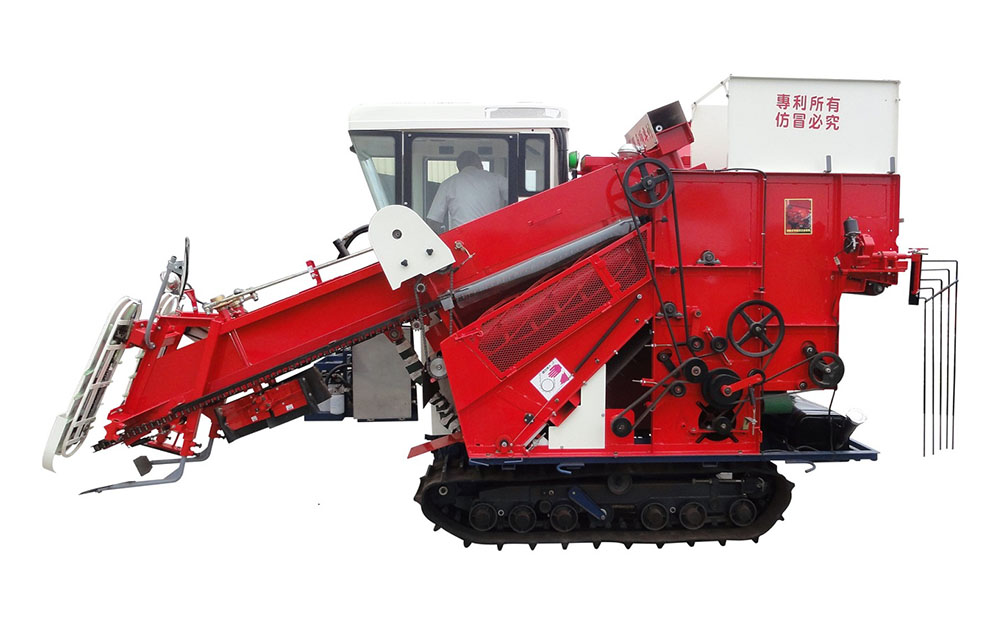

Model 601 Peanut Harvesting Machine

Body
Length 4900 (mm)
Width 2100 /2850 (Max) (mm)
High 2650/ 4900 (Max) (mm)
Weight 2900 (kg)
Engine
Model Kubota
Type Vertical 4 cycle liquid cooled diesel
Engine 29.8(40) & 44.74 (60) (KW(HP)
Rated Engine Speed 2700 (RMP)
Displacement 2.746 (L)
Transmissions HST
Battery Power 150 (CCA)
Fuel Tank Capacity 40 (L)
Cutting
Deep adjustment Around 15 (cm)
Cuter bar range 30~40 (cm)
Grain Tank
Height Adjustment Hydraulics
Capacity 800 (L)
Harvesting Capacity Acer / Hour 0.68 (TAIWAN)
* 1 HP = 745.7W = 0.7457KW.

*Appearance and specifications are subject to change without notice for product improvement. YCM reserves the right of final explanation

Options:

Cab、LED、Reversing display

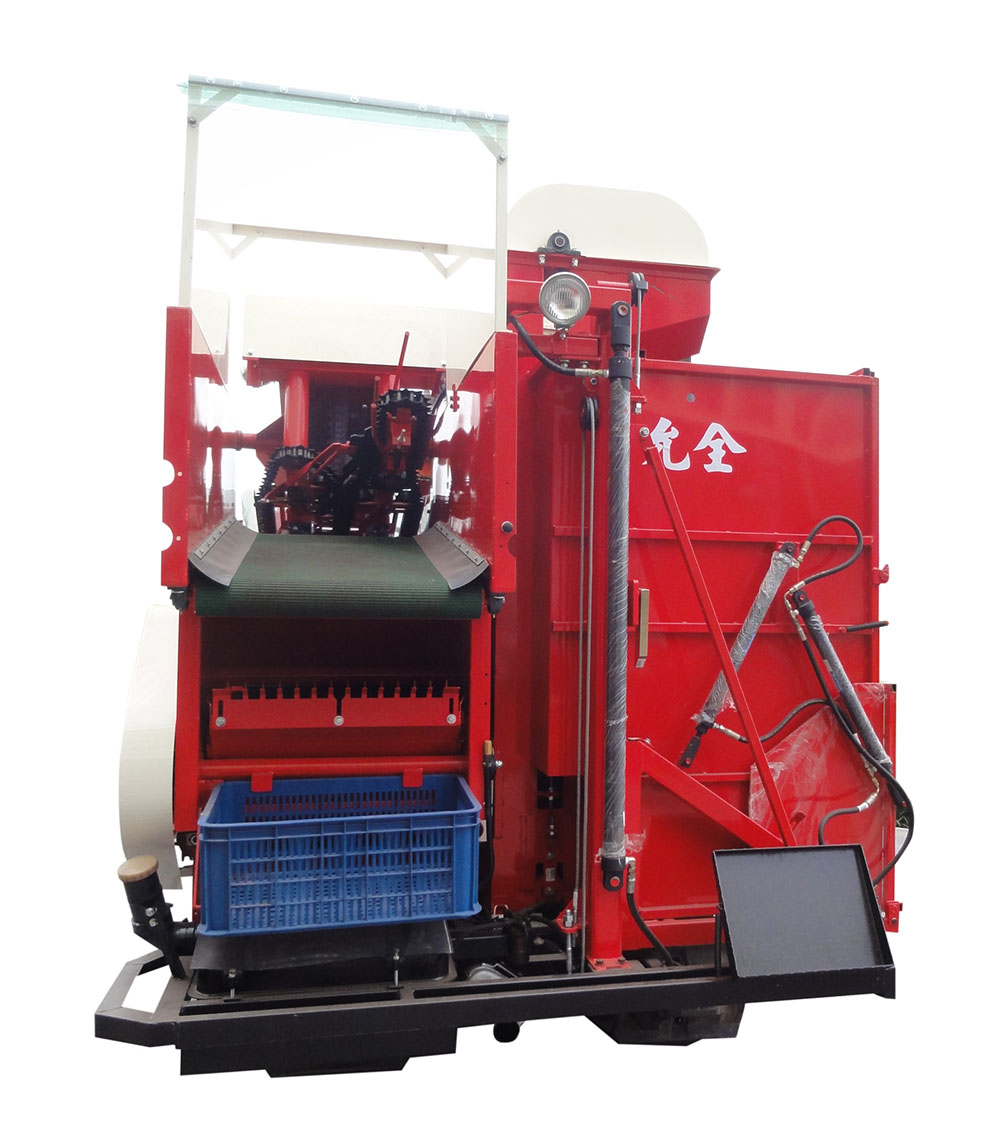

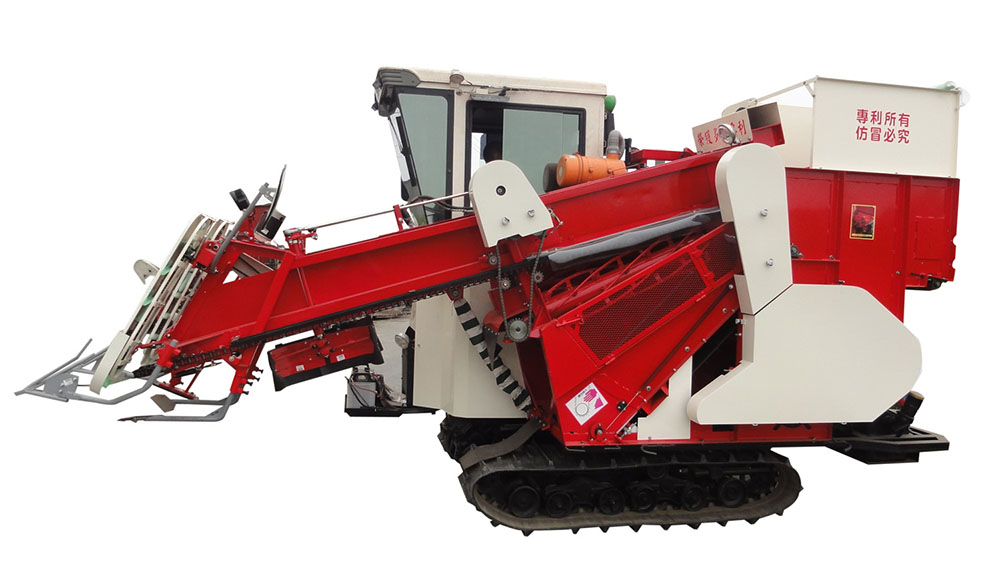

Model 525 Peanut Harvesting Machine
